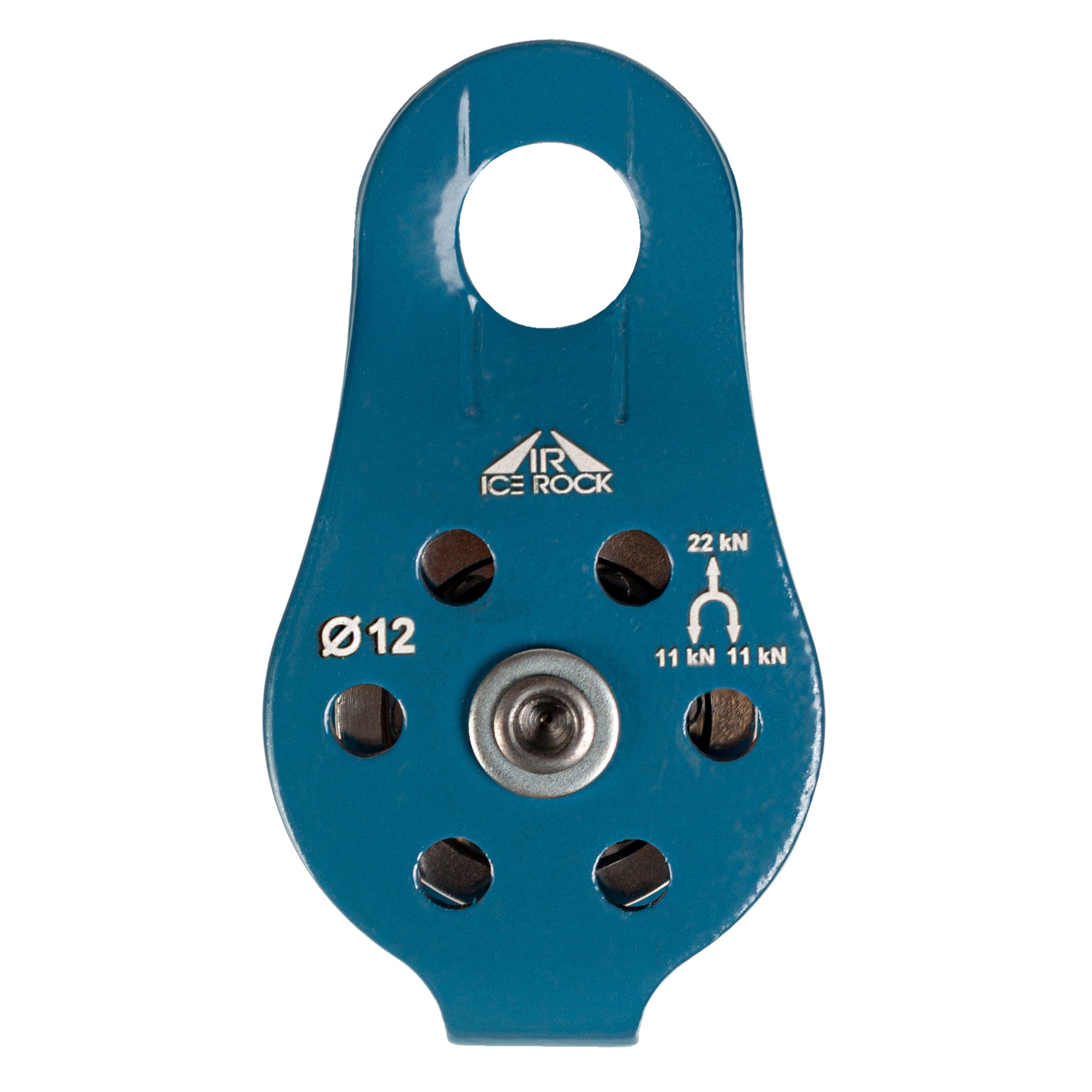

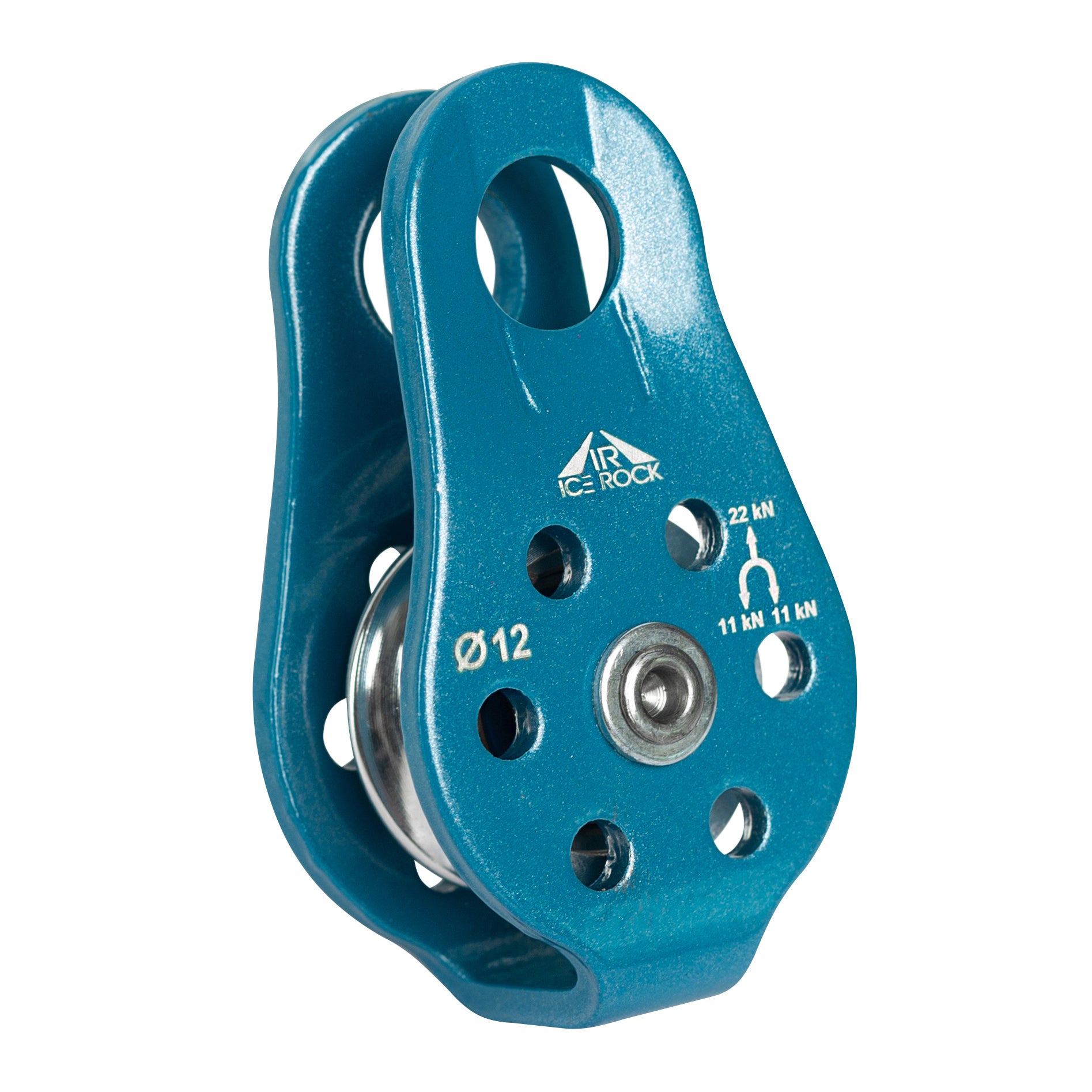

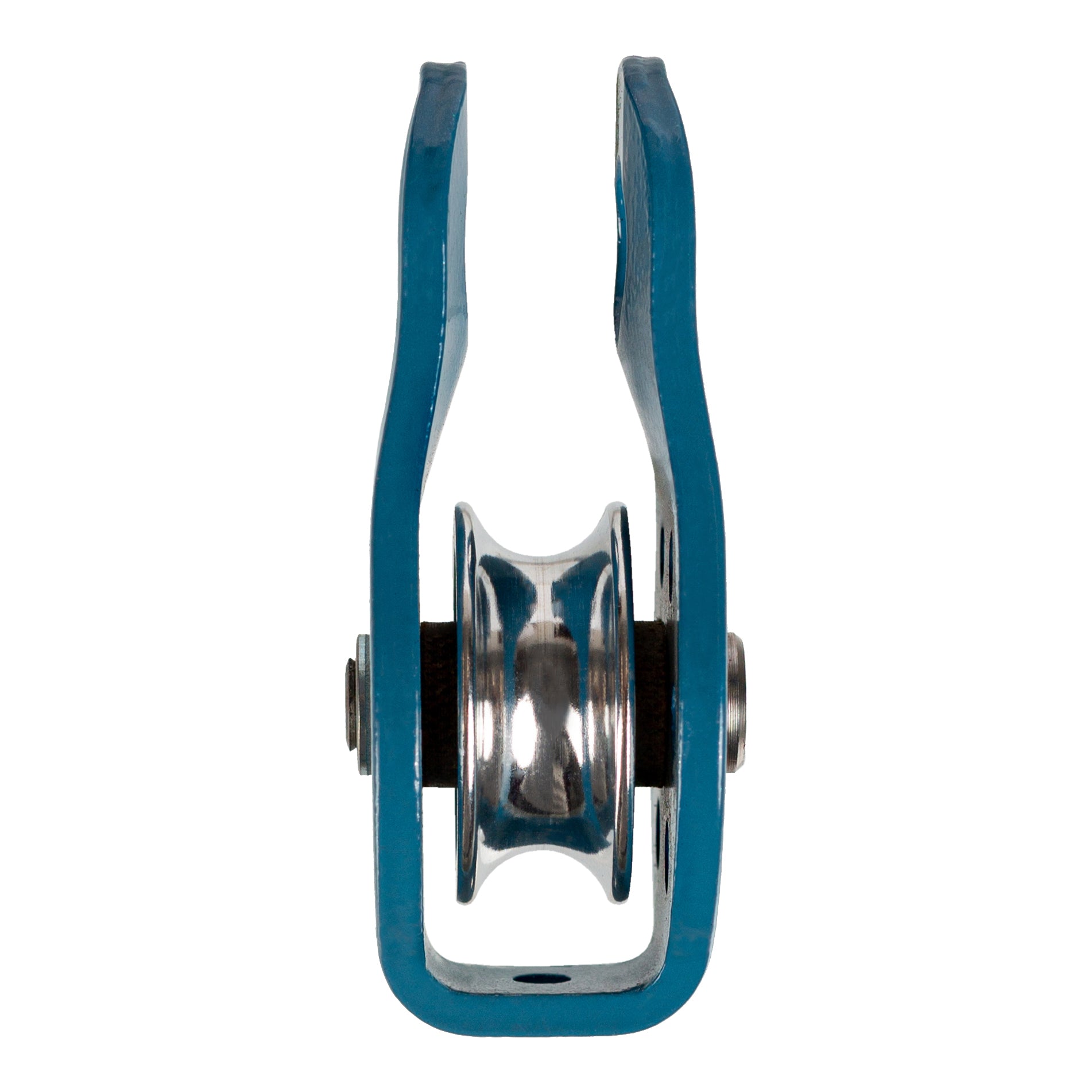

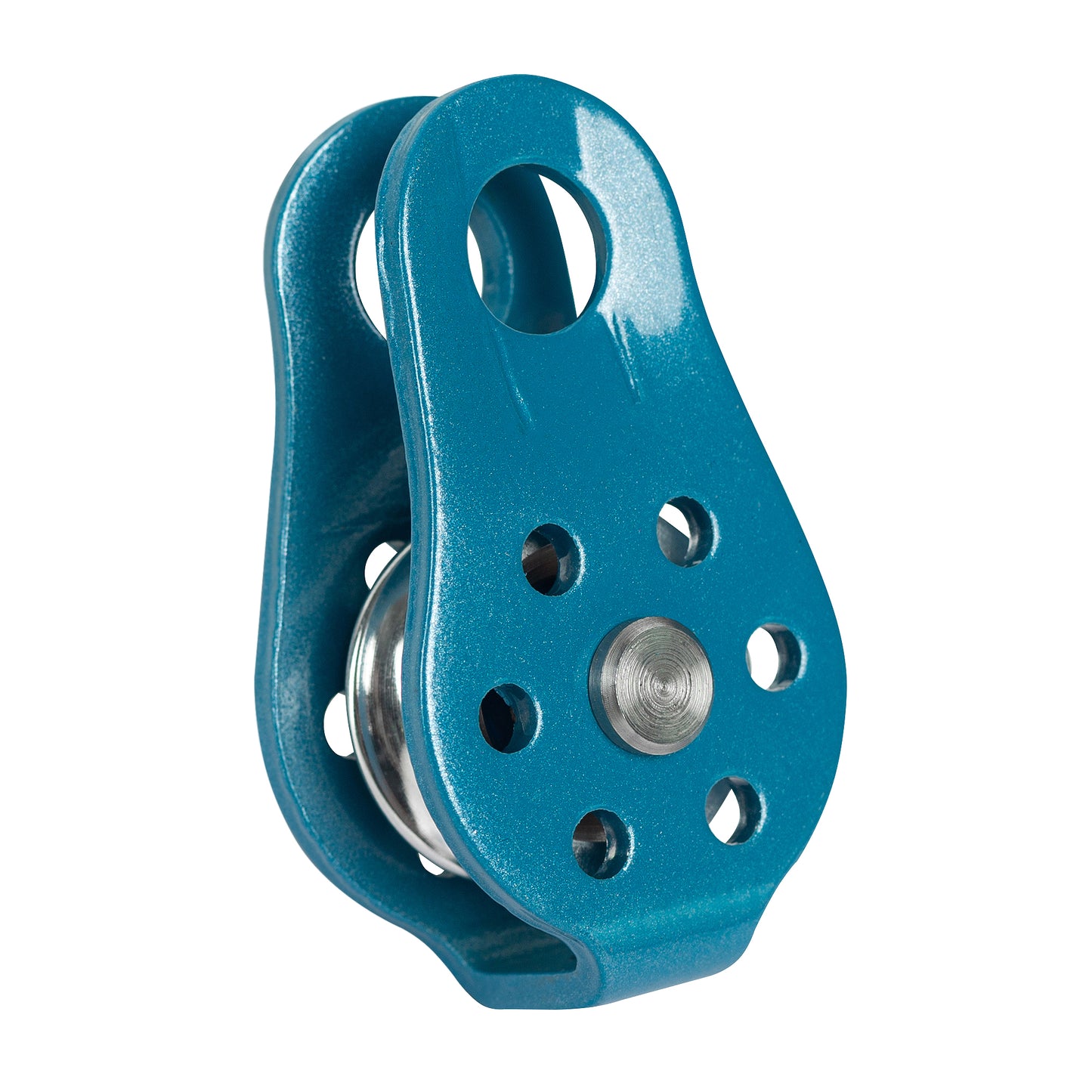

A compact and durable pulley designed for hauling systems, lowering loads, tensioning fixed lines, and setting up mechanical advantage systems.
The high-efficiency ball bearing ensures smooth rope travel with up to 90% efficiency. Fixed side plates make it quick to install on the rope while maintaining strength and reliability.
Specifications
| Rope compatibility | 8-13 mm / 0.31–0.51 in. |
| Efficiency | 90% (ball bearing) |
| Working load limit (WLL) | 5 kN |
| Breaking strength (MBS) | 22 kN |
| Weight | 87±5 gr / 0.19 ± 0.01 lbs |
| Sheave diameter | 25 mm / 0.98 in. |
| Side plates | Aluminum alloy |
| Sheave | 1 piece, aluminum alloy |
| Certification | RST |
